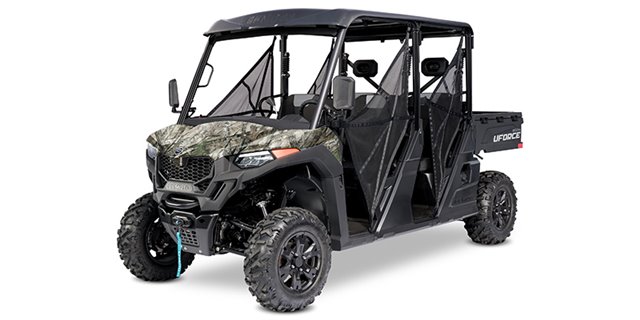

2025 CFMOTO UFORCE 800 XL

Stock #4VC143
MSRP: $13,449 USD

196 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2025 CFMOTO UFORCE 800 XL . I'm in the area and you can reach me at or on my phone at .
  • Status:
    New
  • Vehicle:
    2025 CFMOTO UFORCE 800 XL
  • VIN:
    LCELVYZU3S6000237
  • Color:
    Camo
  • Stock Number:
    4VC143
  • Title:
    Clear
  • Location:
    Big River Motorsports
  • Warranty:
    Manufacturer's w/ Extended Available

AUDIO & COMMUNICATION

  • Bluetooth® Audio:
    Yes
  • Mobile App Instrumentation:
    Yes

BRAKES

  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Type:
    Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Rear
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Number Of Driveline Modes:
    2

ENGINE

  • Carburetion Brand:
    Bosch
  • Carburetion Type:
    Fuel Injected
  • Cooling:
    Liquid
  • Cylinders:
    2
  • Displacement (cc):
    800
  • Displacement (ci):
    48.8
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Horsepower (bhp):
    63
  • Horsepower (kW):
    47
  • Horsepower RPM:
    7000
  • Starter:
    Electric
  • Torque (Ft Lbs):
    51
  • Torque (Nm):
    69.1
  • Torque RPM:
    5500
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    4
  • Valves:
    8

EXTERIOR

  • A-Arm Skid Plate (Front):
    Yes
  • A-Arm Skid Plate (Rear):
    Yes
  • Bash Plate (Front):
    Yes
  • Bash Plate (Rear):
    Yes
  • Body Material:
    Plastic
  • Cab Canopy Material:
    Hard
  • Cab Door Material:
    Soft
  • Exhaust Guard:
    Yes
  • Frame:
    Steel
  • Full Length Skid Plate:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Gauge

LIGHTS

  • Type:
    LED

SEATS

  • Headrest:
    Yes
  • Number Of Rows:
    2
  • Number Of Seats:
    5
  • Seat Material:
    Vinyl
  • Seat Type:
    Bench

STEERING

  • Steering Control:
    Steering Wheel
  • Steering Type:
    Power

STORAGE

  • Bed Capacity (kgs.):
    299.4
  • Bed Capacity (lbs.):
    660
  • Cargo Bed Tilt:
    Yes
  • Integral Tie-Down Hooks:
    Yes

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Suspension Type:
    Independent A-Arm
  • Front Travel (in):
    8.9
  • Front Travel (mm):
    226.1
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Stabilizer Bar:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Independent Double A-Arm
  • Rear Travel (in):
    8.9
  • Rear Travel (mm):
    226.1

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    738.9
  • Dry Weight (lbs):
    1629
  • Engine Displacement to Weight (cc):
    0.49
  • Fuel Capacity (gal):
    10.5
  • Fuel Capacity (l):
    39.7
  • Ground Clearance (in):
    11.8
  • Ground Clearance (mm):
    299.7
  • Height (in):
    79
  • Height (mm):
    2006.6
  • Length (ft):
    11.92
  • Length (ft/ft):
    11
  • Length (ft/in):
    11
  • Length (in):
    143
  • Length (mm):
    3632.2
  • Towing Capacity (kgs):
    680.4
  • Towing Capacity (lbs):
    1500
  • Turning Radius (ft):
    18
  • Wheelbase (in):
    109.1
  • Wheelbase (mm):
    2771.1
  • Width (in):
    60
  • Width (mm):
    1524

TOWING & HAULING

  • Rear Hitch Type:
    Receiver
  • Size (cm):
    5.1
  • Size (in):
    2
  • Weight (kgs):
    2041.2
  • Weight (lbs):
    4500

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Chain
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Brand:
    CVTech
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    27 x 9 - 14
  • Front Tire Diameter (in):
    27
  • Front Tire Width:
    9
  • Front Wheel Diameter:
    14
  • Rear Tire (Full Spec):
    27 x 11 - 14
  • Rear Tire Diameter (in):
    27
  • Rear Tire Width:
    11
  • Rear Wheel Diameter:
    14
  • Wheels Composition:
    Aluminum
