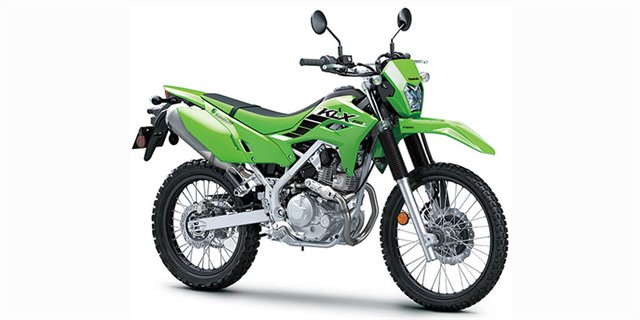

2025 Kawasaki KLX230 S

Photos Coming Soon!

Stock #5BK50
MSRP: $5,299 USD
Check Availability Hi, my name is and I'm interested in this 2025 Kawasaki KLX 230 S - Photos Coming Soon! . I'm in the area and you can reach me at or on my phone at .
  • Status:
    New
  • Vehicle:
    2025 Kawasaki KLX230 S
  • VIN:
    MH4LXEC1XSJP00189
  • Model Number:
    KLX232DSFNL
  • Color:
    Lime Green
  • Stock Number:
    5BK50
  • Title:
    Clear
  • Location:
    Big River Motorsports
  • Warranty:
    Manufacturer's w/ Extended Available

AUDIO & COMMUNICATION

  • Mobile App Instrumentation:
    Yes

BRAKES

  • Front Brake Diameter (in):
    9.4
  • Front Brake Diameter (mm):
    240
  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Diameter (in):
    8.7
  • Rear Brake Diameter (mm):
    220
  • Rear Brake Type:
    Hydraulic Disc

ENGINE

  • Bore (in):
    2.64
  • Bore (mm):
    67
  • Carburetion Brand:
    Keihin
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.4
  • Cooling:
    Air
  • Cylinders:
    1
  • Displacement (cc):
    233
  • Displacement (ci):
    14.2
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector Size (mm):
    32
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    2.6
  • Stroke (mm):
    66
  • Torque (Ft Lbs):
    13
  • Torque (Nm):
    17.6
  • Torque RPM:
    6400
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    2
  • Valves:
    2

EXTERIOR

  • Body Material:
    Plastic
  • Chain Guard:
    Yes
  • Engine Case Guard:
    Yes
  • Exhaust Guard:
    Yes
  • Foot Peg Location:
    Driver and Passenger
  • Frame:
    Steel
  • Side Cover:
    Yes
  • Stand Type:
    Kick

GLASS

  • Folding:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    LED

SEATS

  • Number Of Seats:
    2
  • Seat Height (in):
    33.3
  • Seat Height (mm):
    846
  • Seat Location:
    Driver and Passenger
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Suspension Size (in):
    1.5
  • Front Suspension Size (mm):
    37
  • Front Suspension Type:
    Telescopic Fork
  • Front Travel (in):
    7.9
  • Front Travel (mm):
    200.7
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Brand Name:
    UNI-TRAK®
  • Rear Suspension Material:
    Aluminum
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Rear Travel (in):
    8.8
  • Rear Travel (mm):
    223.5

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    124
  • Dry Weight (lbs):
    273.4
  • Engine Displacement to Weight (cc):
    0.85
  • Fuel Capacity (gal):
    2
  • Fuel Capacity (l):
    7.6
  • Ground Clearance (in):
    9.4
  • Ground Clearance (mm):
    238.8
  • Height (in):
    44.9
  • Height (mm):
    1140.5
  • Length (ft):
    6.82
  • Length (ft/ft):
    6
  • Length (ft/in):
    9.9
  • Length (in):
    81.9
  • Length (mm):
    2080
  • Wet Weight (kg):
    131
  • Wet Weight (lbs):
    288.9
  • Wheelbase (in):
    53.7
  • Wheelbase (mm):
    1364
  • Width (in):
    33.3
  • Width (mm):
    846

TRANSMISSION

  • Number Of Speeds:
    6
  • Primary Drive (Rear Wheel):
    Chain
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    2.75 x 21 45P
  • Front Tire Speed Rating:
    P
  • Front Wheel Diameter:
    21
  • Front Wheel Width (in):
    1.6
  • Rear Tire (Full Spec):
    4.10 x 18 59P
  • Rear Tire Speed Rating:
    P
  • Rear Wheel Diameter:
    18
  • Rear Wheel Width (in):
    1.85
  • Tube / Tubeless:
    Tubed
  • Wheels Composition:
    Aluminum
