2024 Polaris Ranger Crew XD 1500 NorthStar Edition Ultimate

Photos Coming Soon.

Stock #U4V61
Your Price: $49,999

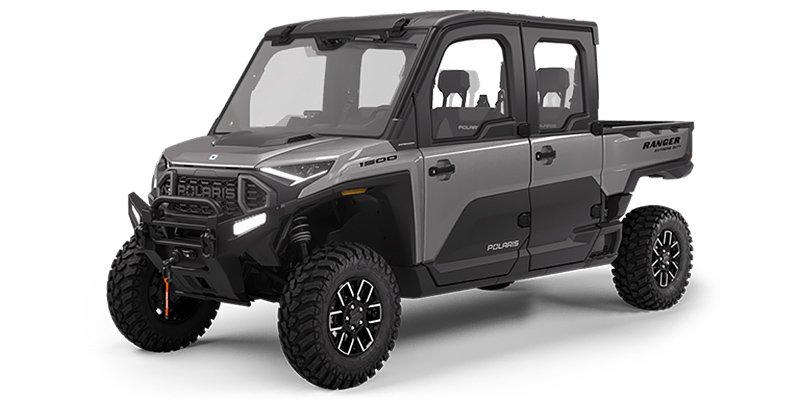

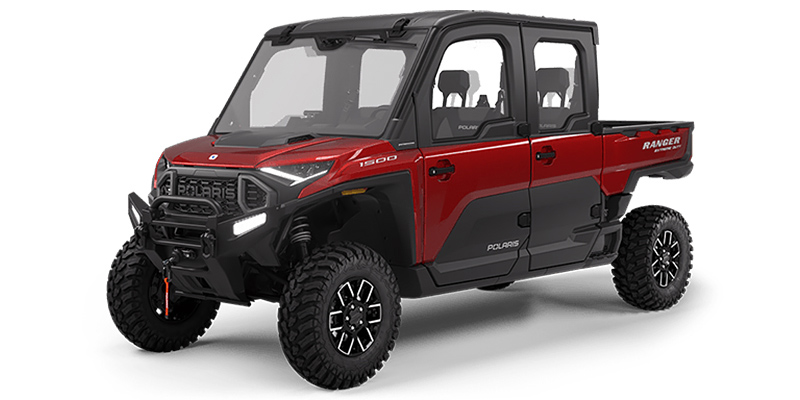

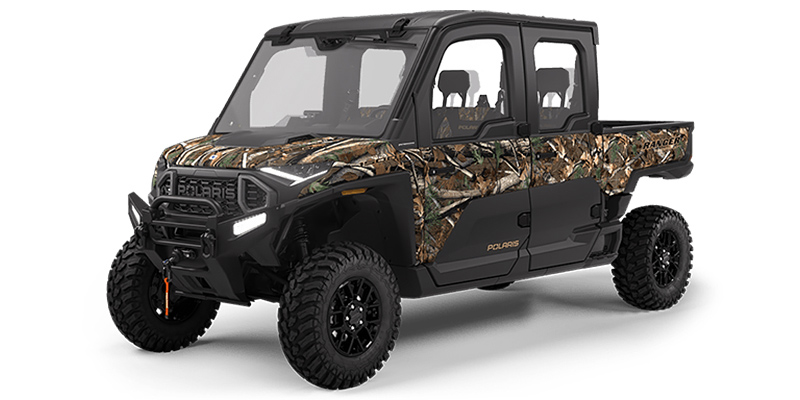

Stock Photos - Actual Images Coming Soon

326 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2024 Polaris Ranger Crew XD 1500 NorthStar Edition Ultimate - Photos Coming Soon. . I'm in the area and you can reach me at or on my phone at .
  • Status:
    Pre-Owned
  • Vehicle:
    2024 Polaris Ranger Crew XD 1500 NorthStar Edition Ultimate
  • VIN:
    3NSX6W1R6RM111254
  • Model Number:
    R24X6W1RAS
  • Color:
    Turbo Silver
  • Stock Number:
    U4V61
  • Title:
    Clear
  • Location:
    Big River Motorsports
  • Warranty:
    As Is

AUDIO & COMMUNICATION

  • Bluetooth® Audio:
    Yes
  • Brand Name:
    JBL
  • Mobile App Instrumentation:
    Yes
  • Number Of Speakers:
    4

BRAKES

  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Type:
    Hydraulic Disc

DRIVE LINE

  • Driveline Brand:
    On-Demand™
  • Driveline Type:
    Selectable 4X2 / AWD
  • Limited Slip Differential Location:
    Center
  • Number Of Driveline Modes:
    4

ENGINE

  • Carburetion Type:
    Fuel Injected
  • Cooling:
    Liquid
  • Cylinders:
    3
  • Displacement (cc):
    1498
  • Displacement (ci):
    91.4
  • Engine Brand Name:
    ProStar™
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    In-Line
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Horsepower (bhp):
    110
  • Horsepower (kW):
    82.1
  • Starter:
    Electric
  • Torque (Ft Lbs):
    105
  • Torque (Nm):
    142.4
  • Valve Configuration:
    DOHC

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • Cab Canopy Material:
    Hard
  • Cab Door Material:
    Metal
  • Frame:
    Steel
  • Full Length Skid Plate:
    Yes

GLASS

  • Folding:
    Yes
  • Folding:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • GPS Brand:
    RIDE COMMAND™
  • Temperature Warning Type:
    Gauge

LIGHTS

  • Type:
    LED

SEATS

  • Headrest:
    Yes
  • Number Of Rows:
    2
  • Number Of Seats:
    6
  • Seat Material:
    Vinyl
  • Seat Type:
    Bucket

STEERING

  • Steering Control:
    Steering Wheel
  • Steering Type:
    Power

STORAGE

  • Bed Capacity (kgs.):
    680.4
  • Bed Capacity (lbs.):
    1500
  • Bed Height (in):
    13.4
  • Bed Height (mm):
    340
  • Bed Length (in):
    43.4
  • Bed Length (mm):
    1102
  • Bed Width (in):
    56
  • Bed Width (mm):
    1422
  • Cargo Bed Material:
    Polyethylene
  • Cargo Bed Tilt:
    Yes
  • Integral Tie-Down Hooks:
    Yes
  • Number Of Cupholders:
    4

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Stabilizer Bar:
    Yes
  • Front Suspension Type:
    Independent Double A-Arm
  • Front Travel (in):
    12
  • Front Travel (mm):
    305
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Independent Double A-Arm
  • Rear Travel (in):
    12
  • Rear Travel (mm):
    305

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    1507
  • Dry Weight (lbs):
    3323
  • Engine Displacement to Weight (cc):
    0.45
  • Fuel Capacity (gal):
    13.6
  • Fuel Capacity (l):
    51.5
  • Ground Clearance (in):
    15
  • Ground Clearance (mm):
    380
  • GVWR (kgs):
    2284
  • GVWR (lbs):
    5035
  • Height (in):
    78
  • Height (mm):
    1980
  • Length (ft):
    13.67
  • Length (ft/ft):
    13
  • Length (ft/in):
    8
  • Length (in):
    164
  • Length (mm):
    4165
  • Payload Capacity (kgs):
    775
  • Payload Capacity (lbs):
    1665
  • Towing Capacity (kgs):
    1588
  • Towing Capacity (lbs):
    3500
  • Turning Radius (ft):
    19.4
  • Wheelbase (in):
    127
  • Wheelbase (mm):
    3226
  • Width (in):
    64
  • Width (mm):
    1630

TOWING & HAULING

  • Rear Hitch Type:
    Receiver
  • Size (cm):
    5
  • Size (in):
    2
  • Weight (kgs):
    2721.6
  • Weight (lbs):
    6000
  • Winch Brand Name:
    Polaris

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Brand:
    STEELDRIVE
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    Kenda® CrossTrail
  • Front Tire Diameter (in):
    30
  • Front Tire Width:
    10
  • Front Wheel Diameter:
    15
  • Rear Tire (Full Spec):
    Kenda® CrossTrail
  • Rear Tire Diameter (in):
    30
  • Rear Tire Width:
    11
  • Rear Wheel Diameter:
    15
  • Tire Brand:
    Kenda
  • Wheels Composition:
    Aluminum
